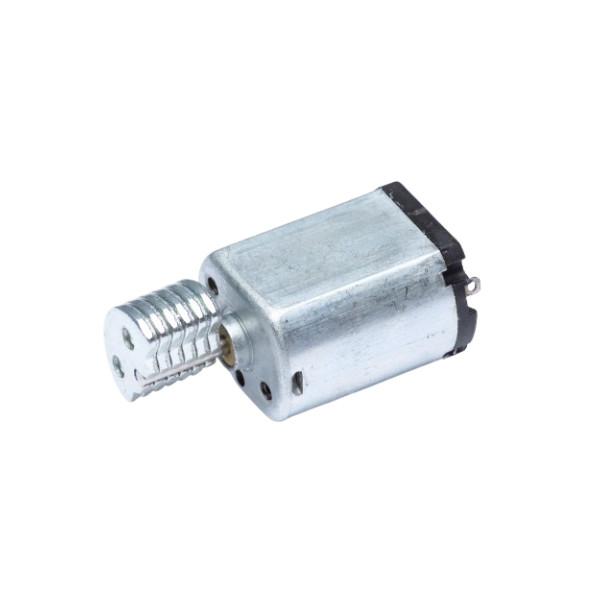

Custom 030 Small Electric Vibrating Motors For DIY Massager Model Accessories

Our FF-030 series represents a premium 15.5mm DC vibration motor with metal vibrating parts.

Key Specifications:
✔ Operational Voltage Range: 3V-12V DC
✔ Speed: 3000-13000 RPM
✔ Vibrating Parts: eccentric wheel
✔ Shaft Options: D-cut or round (customizable)
✔ Current : ≤45mA (no-load), ≤180mA (stall) @5.0V

∇If one of our standard vibration motors does not meet your requirements, we can offer you a customized version as follows: adding connectors; custom wire .

12mm Small Electric Vibrating Motors With Eccentric Wheel Technical Specifications

Model : FF-030 vibration micromotor

Eccentric Wheel Size: 11mm*9.5mm

030 Motor Size:12mm*15mm*18.6 (H*D*L)

030 Motor Shaft Diameter : Φ1.5mm custom
Shaft size : Approx. 4 x L mm (Dia.*L) Length can be customized
Nominal Voltage : DC 3V 4.5V 5.5V 6V 12V

Operating Voltage:3V-12V
Speed Customization:

Voltage:3.0V No-load current:230mA No-load speed:4500RPM
Voltage:3.7V No-load current:310mA No-load speed:4800RPM
Voltage:4.2V No-load current:400mA No-load speed:5200RPM

Application: Adult products, beauty instrument, massager, medical equipment, etc
Commutation: Metal brush
Construction: micro Permanent Magnet iron cored dc electric motor;

∇ The above list of parameters is a general parameter, if different needs can be processed according to requirements.

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

16mm 030 Small Electric Vibrating Motors Dimensions

Due to differences in testing methods and tools, there may be a measurement tolerance of around 1mm to 2mm.
If you have a technical drawing, please send it to our customer service representative — we will provide a customized motor solution based on your requirements.

030 Mini Motor Customized Vibrating Wheel Dispaly

030 Vibrating head size: length 10mm, thickness 7mm	030 Vibration Motor Compact DC Vibration Motor With Counter Weight Vibration	Micro Metal Gear Motor Vibration DC Motor

The above list of parameters is a general parameter, if different needs can be processed according to requirements.

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

Q & A

1. Can I request a product to be made with special materials?
A: Absolutely. Simply provide us with your design drawings or a sample, and our R&D team will evaluate the feasibility. We will get back to you with the most suitable solution.

2. Can I visit your factory?
A: You are very welcome to visit us. Please let us know in advance before your departure, so we can help guide you and arrange a pickup if possible.

3. Do you offer OEM services? Can you manufacture based on our drawings?
A: Yes, we offer OEM services. We accept custom designs and have a professional team that can develop new products based on your drawings or samples.

4. Can I request a change in packaging and transportation methods?
A: Yes, we can accommodate changes in packaging and transportation based on your needs. However, any additional costs or differences will be borne by the buyer.

5. Can I request an earlier shipment?
A: This depends on our current inventory levels. If we have sufficient stock available, we will do our best to meet your requested schedule.

Custom 030 Small Electric Vibrating Motors For DIY Massager Model Accessories Images
